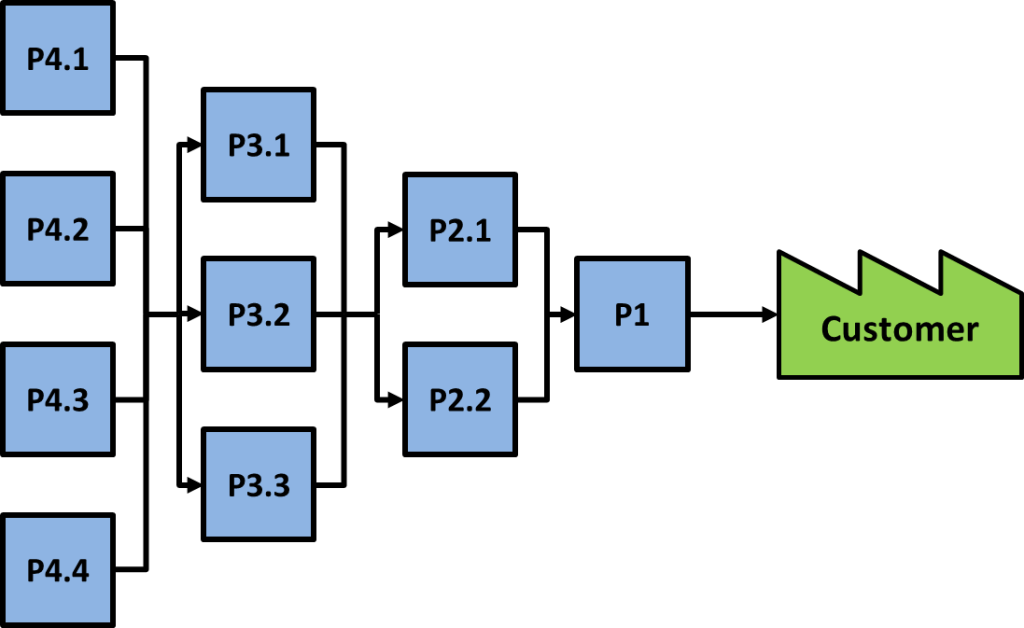

Example for different customer takts if the processes are parallel. While P1 has the “normal” customer takt, P2.1 and P2.2. have the double takt, P3.1, 3.2, and 3.3 the triple takt and the 4.1-4.4 the quadruple takt – all assuming that the processes have the same speed and work in parallel. Image copyright Christoph Roser on AllAboutLean.com.
